Thoughts on a new after market magazine?

This is a discussion on Thoughts on a new after market magazine? within the Ammunition forums, part of the M14 M1A Forum category; I work in a stamp shop that makes magazines for Russian firearms. Our tooling guy wants to make M-14 magazines and I want to get ...


Go Back   M14 Forum > M14 M1A Forum > Ammunition

61Thanks
Reply

LinkBack Moderator Tools Display Modes

Old July 25th, 2016, 10:57 PM   #1
Newbie

Join Date: May 2016
Location: Deland FL USA
Posts: 14
Thoughts on a new after market magazine?

I work in a stamp shop that makes magazines for Russian firearms. Our tooling guy wants to make M-14 magazines and I want to get an idea of if they will be accepted.

The idea is a heavily corrugated magazine to prevent deforming in use or heat treatment. A curved magazine body to allow increased capacity without low feeds. And a tool less take down floor plate to aid in easy cleaning.

Magazine bodies would be made from 1050 carbon steel and treated with Nitride coating. Which would be more resistant to scuffing, scratching and rust compared to Phosphate coatings.

Overall geometry would be faithful to the original design but would use newer designs to improve function in select areas.

I understand that CMI has a pretty good hold of the marked, but they have not really made anything different in a long time.. The design of M-14 magazines has not really changed in 60 years.

Are there any defects that forum members could point out that we could try to solve?

Csspecs is online now
Remove Ads
Old July 26th, 2016, 04:43 AM   #2
Old Salt

Patchhound's Avatar

Join Date: Jun 2012
Location: Michigan
Posts: 1,644
The tail on the follower that engages the bolt stop should be larger as they were in the original usgi magazines as compared to current CMI mags. There have been a few guns that won't play nice with the checkmate magazines because of this.

Thanks from hytekrednek and Diablo Gato
Patchhound is offline
Old July 26th, 2016, 05:15 AM   #3
Lifer

Harleystoo's Avatar

Join Date: May 2012
Location: Albuquerque, NM
Posts: 2,065
An extended and/or curved mag may interfere with prone and sand-bagged positions.

20 rds. of .308 weighs 1 lbs.

Thanks from Itsadryheat
Harleystoo is offline

Old July 26th, 2016, 05:40 AM   #4
Lifer

USSF06's Avatar

Join Date: Aug 2012
Location: North Carolina
Posts: 2,579
While I don't oppose new concepts, one thing I love about M14s is their straight magazines.

It wouldn't hurt to make a competitive steel magazine, but I think in terms of magazines that more people are waiting for some sort of polymer/magpulish magazine to be manufactured (and be reliable).

Thanks from trbon8r and dwight55
USSF06 is online now
Old July 26th, 2016, 06:21 AM   #5
Automatic Rifleman

jdavidboyd's Avatar

Join Date: Jun 2016
Location: Hudson, FL
Posts: 127
I've always been surprised that there is not a lightweight polymer mag made by someone. That's what I might like to see. Although then again, if it ain't broke, don't fix it. An empty steel mag can't be that much heavier than an empty polymer mag would be...

Thanks from Nelson54
jdavidboyd is offline
Old July 26th, 2016, 06:39 AM   #6
Banned Camp

Join Date: Mar 2015
Location: a glass vacuum
Posts: 846
I love CMI magazines. How could they be improved by being plastic? Only talking about 20 CMI magazines though.

I prefer metal over polycarbonate any day, even on weapons.

Thanks from Nelson54 and Loaded605
High Voltage is offline
Old July 26th, 2016, 06:52 AM   #7
Lifer

USSF06's Avatar

Join Date: Aug 2012
Location: North Carolina
Posts: 2,579
Quote:
Originally Posted by jdavidboyd View Post
I've always been surprised that there is not a lightweight polymer mag made by someone. That's what I might like to see. Although then again, if it ain't broke, don't fix it. An empty steel mag can't be that much heavier than an empty polymer mag would be...
There are polymer mags out there, but the general consensus is they are garbage. I think the bolt shaves the plastic while loading rounds.

Magpul has been asked about M14 mags but they do not believe there is a market for them.

Thanks from wiz1997
USSF06 is online now
Old July 26th, 2016, 07:35 AM   #8
Automatic Rifleman

SMAWman's Avatar

Join Date: Aug 2013
Location: North Carolina
Posts: 172
The single biggest issue you will have is reliability. If it does not work 100%, all the time, then it will be a wasted venture in my mind. Kind of hard to improve upon a 60 year old battle proven design.
I am not saying that I will not try them out, but I have less issues with my M14 magazines then I do with my AR magazines.

Keep us informed on you developments!

SMAWman

Thanks from Nelson54 and High Voltage
SMAWman is offline
Old July 26th, 2016, 07:55 AM   #9
Lifer

Dougboffl's Avatar

Join Date: Nov 2013
Location: Sonshine State, JC
Posts: 2,536
welcome Csspecs!

Personally I think a metal VENTED hand guard (original in appearance to the fiberglass) that doesn't crack - might be received better. Need to be sure it does not rub the stock or transmit heat, if possible.

Thanks from Quicksilvergoat
Dougboffl is online now
Old July 26th, 2016, 08:19 AM   #10
Old Salt

NATOBTHP's Avatar

Join Date: Dec 2010
Location: USA
Posts: 1,271
Your guys should take a good look at a original BM59 magazine. It's actually a better designed than the USGI mag. While they won't interchange between weapons they have stainless steel followers and are stamped differently and feel a bit heavier. Hold them up together in your hands and you'll see and feel the difference.

Thanks from RDS, Lazerus2000 and dwight55
NATOBTHP is offline
Old July 26th, 2016, 09:00 AM   #11
Old Salt

wiz1997's Avatar

Join Date: Sep 2013
Location: Pearland, Texas
Posts: 1,892
Quote:
Originally Posted by Dougboffl View Post
welcome Csspecs!

Personally I think a metal VENTED hand guard (original in appearance to the fiberglass) that doesn't crack - might be received better. Need to be sure it does not rub the stock or transmit heat, if possible.
I've been using the vented fiberglass handguard as well as a vented wooden handguard on my Scout.

(Shameless plug coming: see my rifle "Clarrisa" in the M14 of the Month competition in the GEEDUNK forum.)

It's been mentioned quite a few times on this forum that, the heat rising up through the vents creates a mirage type effect, which interferes with the sight image, using both irons and scope.

In the Texas heat when the ground is already causing a mirage, the additional mirage, caused by the barrel heat, makes seeing a target difficult.

The vented guards look neat, but were used during a time when the M14 was full auto and aiming was not always necessary.

There would be a market for vented metal handguards, just no way of knowing how big of a market.

Magazines will need to be perfected to run totally flawless, to even have a chance of gaining any of the market.

You will have to give away several mags, to M1A owners that we here on the forum trust, for testing and hope they come back with encouraging results.

Difficult to compete with the established companies but there is always a chance for the little guy.

Some may like the curved magazine and are not concerned with bench rest shooting nor added weight.

Remember you are trying to persuade a group of "don't like change, nothing but USGI" die-hards.

wiz1997 is online now
Old July 26th, 2016, 10:20 AM   #12
Banned Camp

Join Date: Mar 2015
Location: a glass vacuum
Posts: 846
Quote:
Originally Posted by NATOBTHP View Post

Your guys should take a good look at a original BM59 magazine. It's actually a better designed than the USGI mag. While they won't interchange between weapons they have stainless steel followers and are stamped differently and feel a bit heavier. Hold them up together in your hands and you'll see and feel the difference.
NATO, they look like great mags. Why wouldn't they be interchangeable between weapons? I haven't done any reading on them.

High Voltage is offline
Old July 26th, 2016, 02:32 PM   #13
Old Salt

Killashrub's Avatar

Join Date: Nov 2014
Location: Polk County, Florida
Posts: 1,348
Keep it 20 rounds. What a lot of us want is a Polymer magazine with steel reinforced top of the magazine. I have been pondering this for a while and I have a crude drawing of a polymer magazine. Something like this.



If or when you get some for testing let us know.

Thanks from USMC Gunny and Wasted ammo
Killashrub is offline
Old July 26th, 2016, 02:52 PM   #14
Lifer

sac troop's Avatar

Join Date: Jul 2007
Location: Cascadia Fault Oh-my!
Posts: 2,025
Quote:
Originally Posted by High Voltage View Post
NATO, they look like great mags. Why wouldn't they be interchangeable between weapons? I haven't done any reading on them.
A-they will not fit.
B- Even the well used surplus ones that are recently now in country, cost twice as much as new C.M.I. mags.


sac troop is offline
Old July 26th, 2016, 02:56 PM   #15
Lifer

Join Date: Oct 2008
Location: NJ
Posts: 4,940

Awards Showcase

Things to consider:

The M14 design requires a well made, robust magazine. Because of the way it "rocks" into place, a polymer mag body with a metal top end would need one helluva good way to attach the 2 pieces together.

The OP works in metal stamping shop. I doubt they want to expand into polymer products.

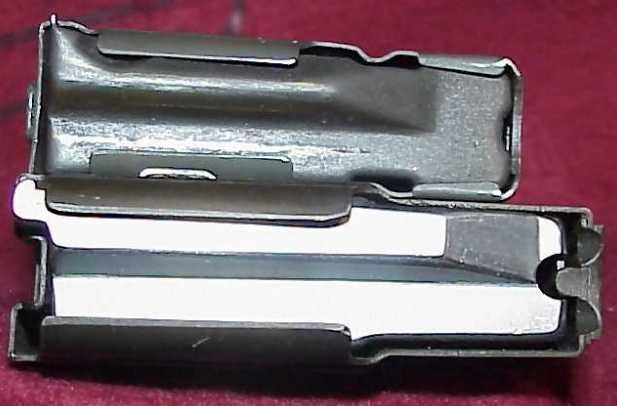

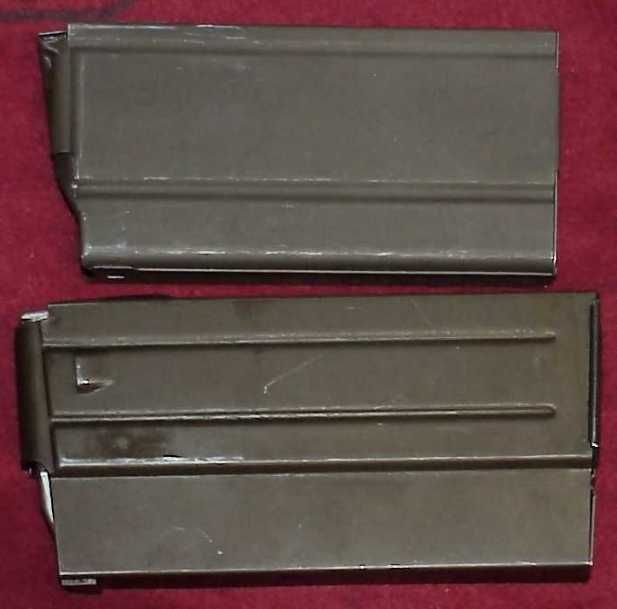

The BM59 mags are expensive not only because they are rare, but because they are extremely well made. They are much larger than M14 mags because of this. http://www.fulton-armory.com//faqs/M14-FAQs/MagComp.htm

Uncle Sam experimented with aluminum mags back when they were trying to make a lightweight version of the M14. I think that is still the best bet for a lighter mag.

A parkerized steel handguard with vents, possibly with a welded clamp, would get a lot interest among the M14 community.

Thanks from M1AFL
KurtC is offline
